Application Examples (Compact High-Efficiency Heat Exchangers)

Growing alumina (Al2O3) film in minute holes at room temperature

Compact High-Efficiency
Heat Exchangers

Apr 2, 2024

Aluminum chloride AlCl3 is the raw material for dimeric molecules. Water is also a macromolecular source of polymers. It is difficult for a room temperature reaction to occur as is, but if you heat it with a Heat Beam Cylinder and introduce it as a monomer, it will react. This is an application that grows aluminum oxide at room temperature.

Content of This Article

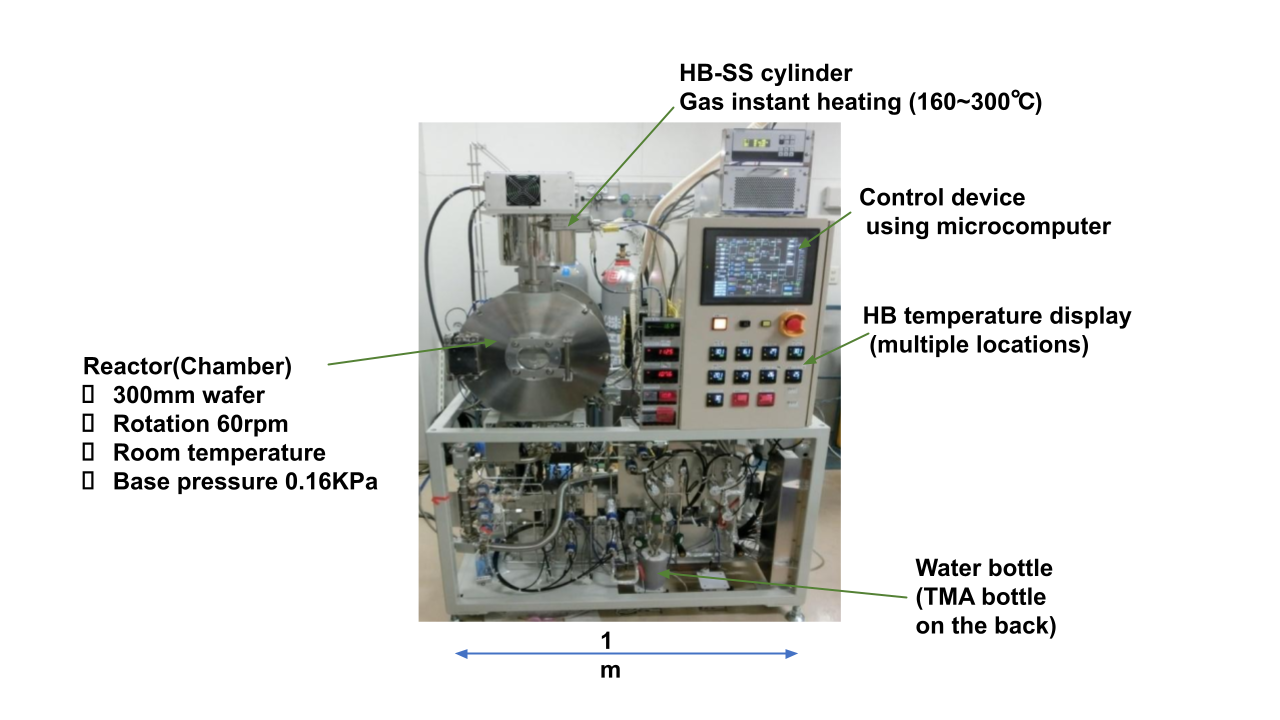

HB-CVD experimental setup for growing alumina (Al2O3) films at room temperature

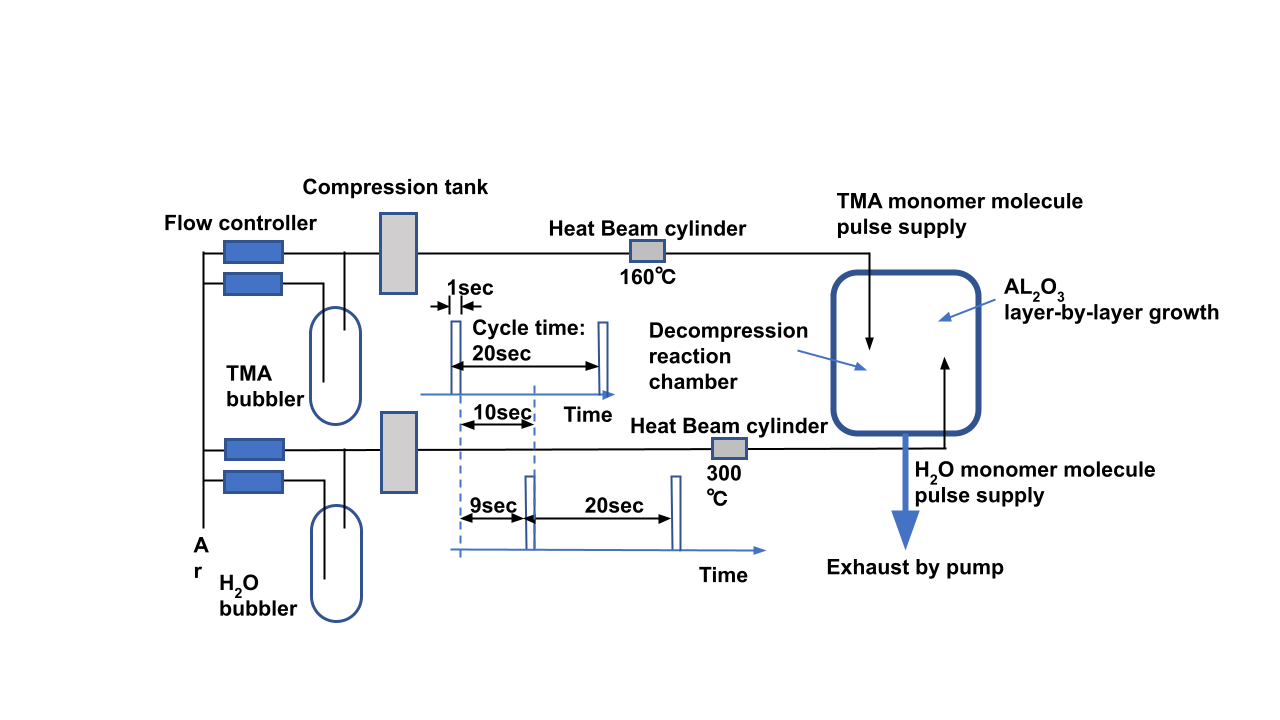

Overview of Al2O3 growth system

Aluminum oxide(Al2O3）

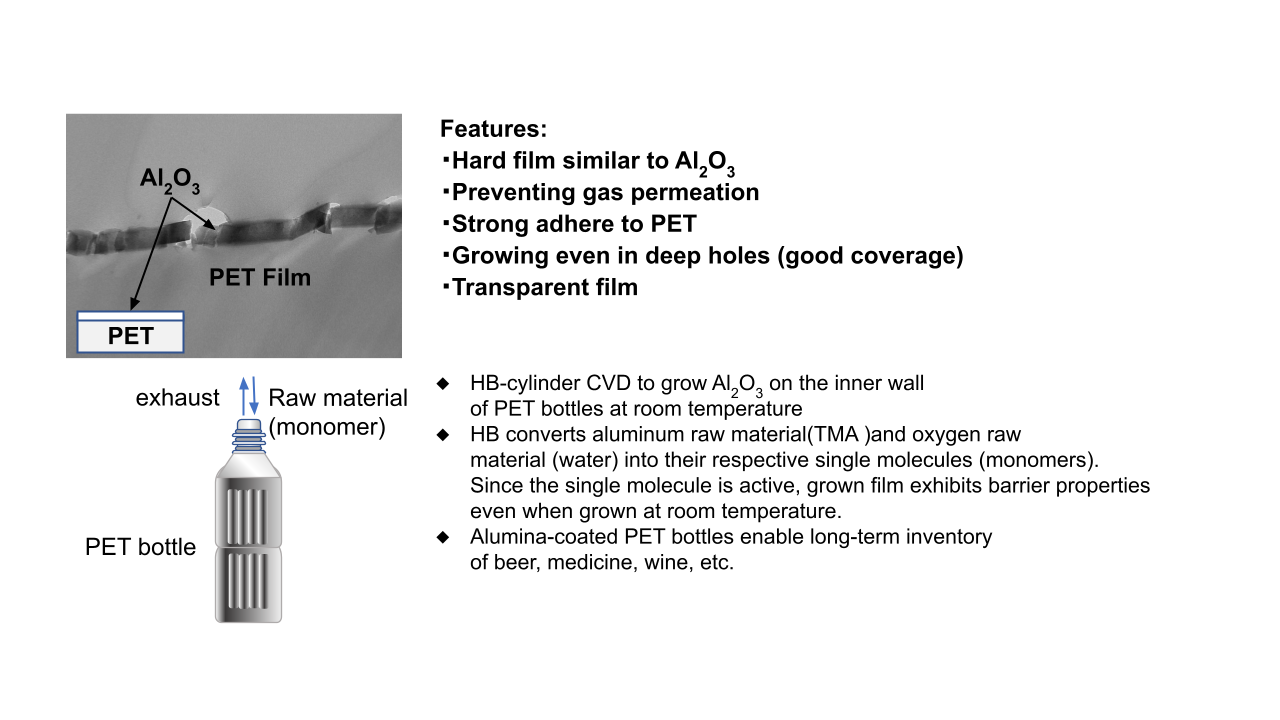

Alumina (Al2O3) is grown at room temperature on the inner wall of PET bottles.

HB-CVD experimental setup for growing alumina (Al2O3) films at room temperature

Overview of Al2O3 growth system

Aluminum oxide(Al2O3）

Alumina (Al2O3) is grown at room temperature on the inner wall of PET bottles.
